Set Up

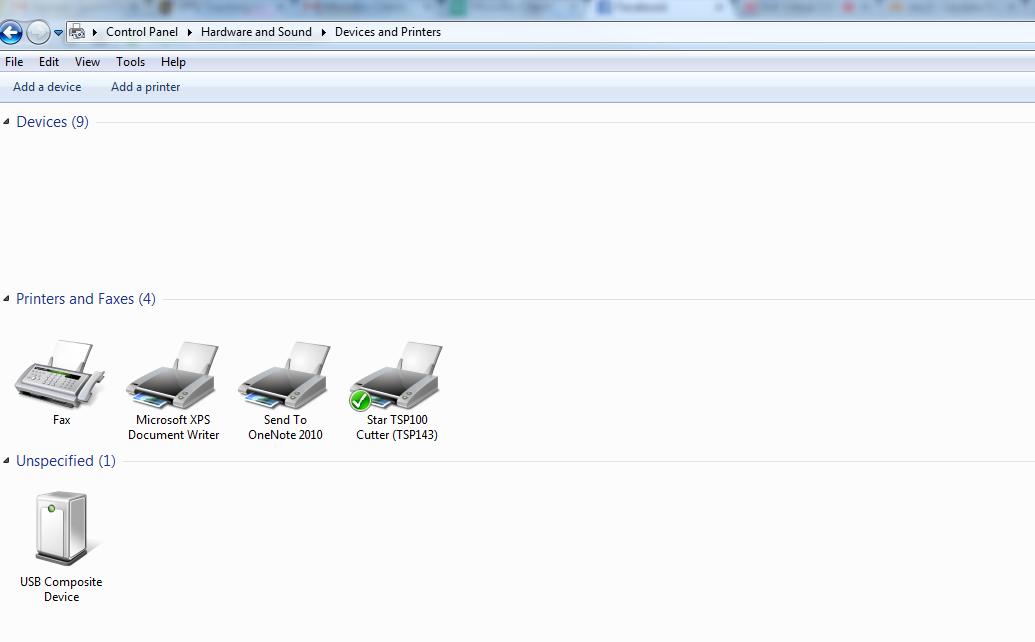

Getting your new TSP143 Printer to work just right takes a few steps. Typically, when you first plug the printer in you will have the printer's drivers automatically installed by your Operating System (Windows). From here, you'll notice if you navigate to your "Control Panel">"Hardware and Sound">"Devices and Printers" that the TSP143 appears as shown below. For Mac Users, this will show in System Preferences >> Printers & Scanners (iMac OSX).

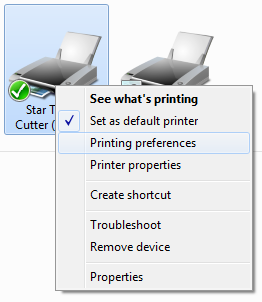

If you right click on the printer and click on Printer Properties/Settings you'll need to set it up as shown below.
- The printer is set to default.

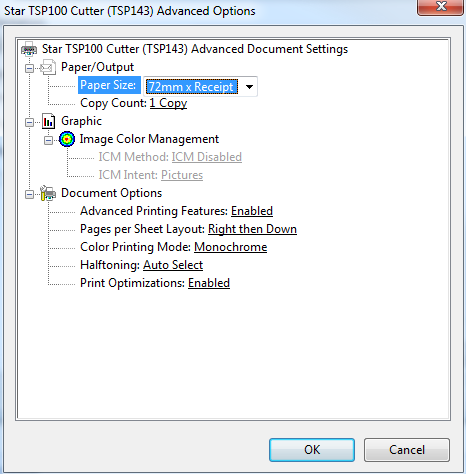

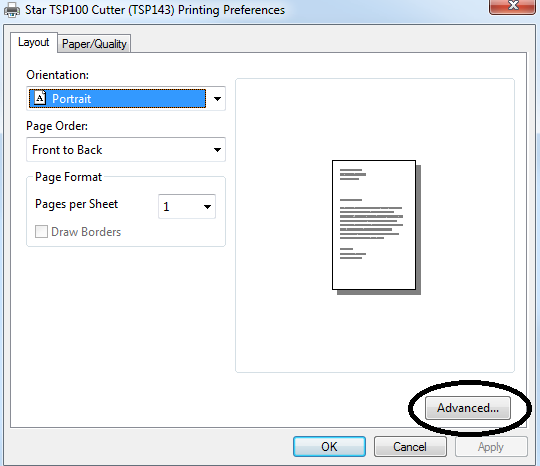

- The paper size reflects your correct receipt paper size (we don't send any printer control commands so the defaults must be correct). Note: the printer size can set in more than 1 place in the printer settings. The image below reflects the most common settings and receipt printer paper size settings.

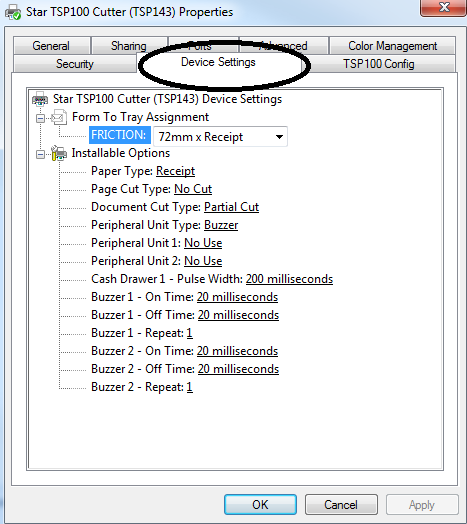

If there is a cash drawer attached check the printer properties for an open drawer command setting and make sure its configured to send the open drawer on before print.
'Apply' or 'Save' to record your changes.
Go to Chrome on any page and type ctrl-p to print - the print preview should display the current page. Select your printer in the print dialogue and
- Set Destination to be your printer
- The preview of the printout should now reflect the correct receipt size. (Tall and skinny for a 40 column receipt). If it doesn't you've got to go back to the printer properties paper size.
- Margins to Minimum
- Uncheck Options: headers and background images
You should be ready to go .. When you complete a receipt you should get a print at the end when its saving - click print and you should get your receipt.

Common Issues

Occasionally, Google Chrome will not pickup on your default receipt printer paper size settings and you will have to set it to the proper receipt paper size one time in the browser when printing. To do this in Chrome, you hit the "More Settings" button in the print preview and select the correct paper size. The below screenshot will allow for you to have a little more guidance.

Note: Ensure that "Headers and Footers" located above is not selected as it will cause printing issues such as shooting out 6 feet of paper per print.

Older Printer Model Settings

If you have an older TSP100 series printer you may slightly different settings. If you see a setting called Cash Drawer 1 set it to Open Before Printing. Paper Size settings should look the same.
